KI-ARTF40(COMBO) Automatic Rotary Tube Filling Machine (40 TPM)
This model is suitable for filling and sealing of Laminated/Plastic as well as Aluminium(Metal) Tubes
Our Fully Automatic Combo Rotary Tube Filling, Sealing & Crimping Machine is engineered to handle Laminated, Plastic, and Aluminium (Metal) tubes on a single high-performance platform. Featuring a precision rotary indexing system, the machine automatically performs tube feeding, orientation, filling, sealing or crimping, coding, and finished tube discharge with minimal operator intervention. Designed for high-speed production and maximum versatility, the machine enables quick changeovers between different tube types, ensuring consistent filling accuracy, reliable sealing quality, and superior productivity.
Precision Features for Automatic Indexer Driven Rotary Tube Filling Machine (Combo Model)
Volumetric Piston Filling (Mechanical driven)
Positive cut-off system to prevent drips and spills.
Hot Air Sealing Technology for Laminated/Plastic tube with dedicated Air Blower.
No Tube-No Filling, No Sealing, No Pressing, No Crimping, No Trimming, No Coding Technology (Saves energy & reduces wear and tear)
Machine function with PLC and operated with 7 inch HMI.
User friendly machine with excellent accessibility from all sides.
Position Indicators integrated for Volume Adjustment Calibration as well for height of the stations at each operation.
Interchangeable station of Trimming unit of Laminated tube with the Coding unit of Aluminium tube.
All contact parts will be in SS 316/SS 316L.
Optimized mechanisms reduce servicing needs.
Easy change over parts for change in tube diameter as well as syringe (filling volume).
Easy change over parts for change in tube diameter as well as syringe (filling volume).
10 digits Coding with changeable metal stereos on one side or two sides during sealing in Lami and coding in Aluminium tube..
Fully CGMP-compliant design.
Technical Specifications
Filling Range & Accuracy
- 3 ml up to 250 ml filling range with the help of changing parts.
- For Above 10 grams, ± 1% accuracy
- For Below 10 grams, ± 2% accuracy
Output & No of stations
- Up to 40 tubes per minute & 12 stations.
Hopper Capacity
- 40 Litres.
Min/Max Tube Diameter and Height
- Diameter: 13 mm up to 50 mm.
- Height: 80 mm up to 200 mm.
Weight (Net & Gross)
- Net Weight: 850 kg
- Gross Weight: 1100 kg
Dimensions (L x W x H)
- 2000 x 1450 x 2200 mm.
Technical Specifications
Product Range
Utility Requirements (At Customer's Scope)
Documentation we can provide to support FDA Validation
Design Qualification (DQ)
Installation Qualification (IQ)
Operations Qualification (OQ)
Instruction & Operating Manual
Factory Acceptance Test (FAT)
Site Acceptance Test (SAT)
As Built Design (GA Drawings)
MOC Certificates (Contact parts)
Test Certificates (TC)
Electrical Drawings
Pneumatic Drawings
Spares List
Get the Best Tube Packing Solution for Your Business
Enquire Now
Related Products
Tube Filling Machines
KI-R&D Semi-Automatic Tube Filling and Hot Air Sealing Machine (TableTop)
Tube Filling Machines
KI-STCTC (Press + Fold) Semi-Automatic Collapsible Tube Crimping Machine
Tube Filling Machines
KI-STCTC (Fold + Code) Semi-Automatic Collapsible Tube Crimping Machine
Tube Filling Machines
KI-STCTC (Press + Fold + Code) Semi-Automatic Collapsible Tube Crimping Machine
Tube Filling Machines
KI-SRTF40(Ultra) Semi-Automatic Rotary Tube Filling and Ultrasonic Sealing Machine
Tube Filling Machines
KI-ARTF40(Ultra) Automatic Rotary Tube Filling and Ultrasonic Sealing Machine (20 TPM)
Tube Filling Machines
KI-ALTF60(COMBO) Automatic Single Head Linear Tube Filling Machine (60 TPM)
Tube Filling Machines

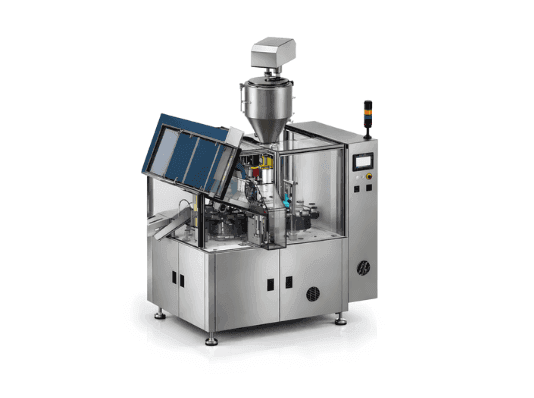

KI-ALTF80 Automatic Linear Servo driven Tube Filling Machine (80 TPM)
