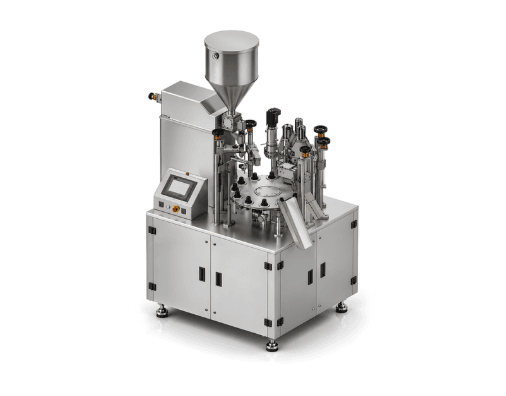

KI-SRTF40(Combo) Semi-Auto Rotary Tube Filling Machine (40 TPM)
Suitable for both Laminated/Plastic as well as Aluminum(Metal) Tubes
Our Combo Rotary Tube Filling, Sealing & Crimping Machine offers the flexibility to process Laminated, Plastic, and Aluminium (Metal) tubes on a single machine. Designed for manufacturers handling multiple tube types, the machine combines filling, sealing or crimping, coding, and tube discharge into one efficient system. With quick changeovers, reliable performance, and high production efficiency, it is the ideal solution for versatile manufacturing environments.
Precision Features for Semi-Automatic Indexer Driven Rotary Tube Filling Machine (Combo Model)
Volumetric Piston Filling (Mechanical driven)
Positive cut-off system to prevent drips and spills.
Hot Air Sealing Technology for Laminated/Plastic tube with dedicated Air Blower.
No Tube-No Filling, No Sealing, No Pressing, No Crimping, No Trimming, No Coding Technology (Saves energy & reduces wear and tear)
Machine function with PLC and operated with 7 inch HMI.
User friendly machine with excellent accessibility from all sides.
Position Indicators integrated for Volume Adjustment Calibration as well for height of the stations at each operation.
Interchangeable station of Trimming unit of Laminated tube with the Coding unit of Aluminium tube.
All contact parts will be in SS 316/SS 316L.
Optimized mechanisms reduce servicing needs.
Easy change over parts for change in tube diameter as well as syringe (filling volume).
10 digits Coding with changeable metal stereos on one side or two sides during sealing in Lami and coding in Aluminium tube..
Fully CGMP-compliant design.
Technical Specifications
Filling Range & Accuracy
- 3 ml up to 250 ml filling range with the help of changing parts.
- For Above 15 grams, ± 1% accuracy
- For Below 15 grams, ± 2% accuracy
Output & No of stations
- Up to 40 tubes per minute & 12 stations.
Hopper Capacity
- 40 Litres.
Min/Max Tube Diameter and Height
- Diameter: 13 mm up to 50 mm.
- Height: 80 mm up to 200 mm.
Weight (Net & Gross)
- Net Weight: 700 kg
- Gross Weight: 900 kg

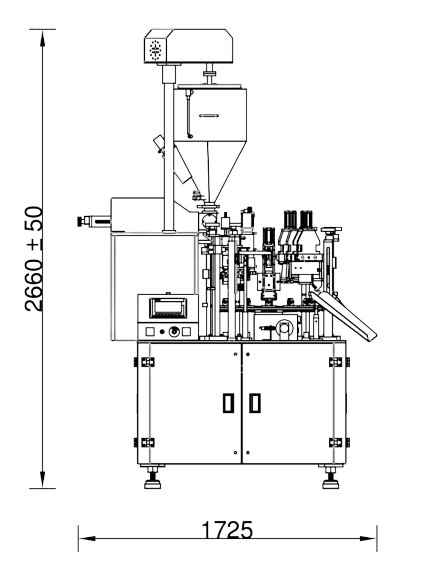

Dimensions (L x W x H)
- 1700 x 1100 x 2200 mm.
Technical Specifications
Product Range
Utility Requirements (At Customer's Scope)
Documentation we can provide to support FDA Validation
Design Qualification (DQ)
Installation Qualification (IQ)
Operations Qualification (OQ)
Instruction & Operating Manual
Factory Acceptance Test (FAT)
Site Acceptance Test (SAT)
As Built Design (GA Drawings)
MOC Certificates (Contact parts)
Test Certificates (TC)
Electrical Drawings
Pneumatic Drawings
Spares List
Get the Universal Tube Packing Solution for Multiple Types of tubes.
Enquire Now
