KI-STFS Semi-Automatic Tube Filling and Hot Jaw Sealing Machine
This model is suitable for filling as well as sealing of Laminated as well as Plastic tubes.
Our Separate Tube Filling & Hot Jaw Tube Sealing System is an economical solution designed for businesses seeking a reliable and cost-effective tube packaging process. The system consists of two independent machines that work seamlessly together—first, the product is accurately filled into the tubes using the filling machine, after which the filled tubes are transferred to the hot jaw sealing machine for secure sealing. This solution is ideal for startups, small-scale manufacturers, pilot production, and R&D batch manufacturing where investment efficiency is a priority.
Precision Features for Tube Filling & Hot Jaw Sealing Machine
Volumetric Piston Filling.
Shut Off Nozzle to avoid dripping.
Position Indicators integrated for Volume Adjustment Calibration.
All contact parts will be in SS 316/SS 316L
Easy change over parts of nozzles, syringes and tube holders.
Easy Slider Movement of Tube Holder in sealing for accurate positioning.
10 digits Coding with metal stereos possible on one side during sealing.
Both machines are operated with Foot Pedal.
Fully CGMP-compliant design.
Technical Specifications
Filling Range
- 5 ml up to 250 ml with the help of changing parts.
Filling Accuracy
- ± 1%
Output
- Up to 12 tubes per min.
Hopper Capacity
- 40 Litres
Min/Max Tube Diameter
- 13 mm Up to 40 mm tube diameter.
Weight (Net & Gross)
- Net Weight: 150 kg
- Gross Weight: 200 kg

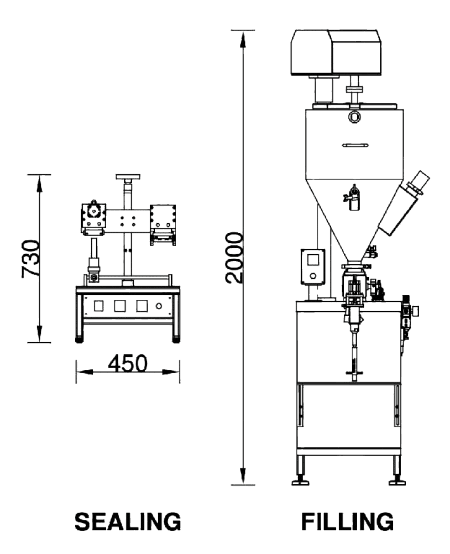

Dimensions (L x W x H)
- Filler:
- Sealer:
Technical Specifications
Product Range
Utility Requirements (At Customer's Scope)
Documentation to support FDA Validation
Design Qualification (DQ)
Installation Qualification (IQ)
Operations Qualification (OQ)
Instruction & Operating Manual
Factory Acceptance Test (FAT)
As Built Design (GA Drawings)
Electrical Drawings
Pneumatic Drawings
Spares List
Get the Right Tube Packaging Solution for Your Business
Enquire Now
