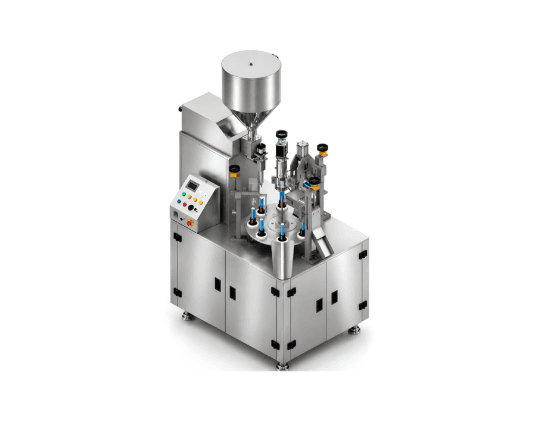

KI-SRTF25 Semi-Automatic Rotary Tube Filling Machine (25 TPM)
Available For both Laminated/Plastic tube as well as Aluminum(Metal) Tubes
Our Rotary Tube Filling and Sealing/Crimping Machine is a compact, semi-automatic solution designed for small to medium-scale production. Available in separate models for Laminated/Plastic tubes and Aluminium (Metal) tubes, the machine features a reliable rotary Geneva indexing mechanism for precise and consistent indexing movement. Only tube loading is performed manually, while filling, sealing or crimping, coding, and tube discharge are carried out automatically, ensuring high productivity, accuracy, and ease of operation.
Precision Features for Semi-Automatic Rotary Tube Filling Machine
Volumetric Piston Filling (Mechanical driven)
Positive cut-off system to prevent drips and spills.
Hot Air Sealing Technology for Laminated/Plastic tube with dedicated Air Blower.
No Tube-No Filling, No Sealing, No Trimming Technology (Saves energy & reduces wear and tear)
Machine function with PLC and operated with 7 inch HMI.
User friendly machine with excellent accessibility from all sides.
Position Indicators integrated for Volume Adjustment Calibration as well for height of the stations at each operation.
All contact parts will be in SS 316/SS 316L.
Optimized mechanisms reduce servicing needs.
Easy change over parts for change in tube diameter as well as syringe (filling volume).
10 digits Coding with changeable metal stereos on one side or two sides during sealing.
Fully CGMP-compliant design.
Technical Specifications
Filling Range
- 3 ml up to 250 ml with the help of changing parts.
Filling Accuracy
- For Above 15 grams, ± 1%
- For Below 15 grams, ± 2%
Output
- Up to 30 tubes per minute.
Hopper Capacity
- 40 Litres.
Min/Max Tube Diameter and Height
- Diameter: 13 mm up to 50 mm.
- Height: 80 mm up to 200 mm.
Weight (Net & Gross)
- Net Weight: 550 kg
- Gross Weight: 750 kg
Dimensions (L x W x H)
- 1500 x 850 x 2200 mm.
Technical Specifications
Product Range
Utility Requirements (At Customer's Scope)
Documentation we can provide to support FDA Validation
Design Qualification (DQ)
Installation Qualification (IQ)
Operations Qualification (OQ)
Instruction & Operating Manual
Factory Acceptance Test (FAT)
Site Acceptance Test (SAT)
As Built Design (GA Drawings)
MOC Certificates (Contact parts)
Test Certificates (TC)
Electrical Drawings
Pneumatic Drawings
Spares List
