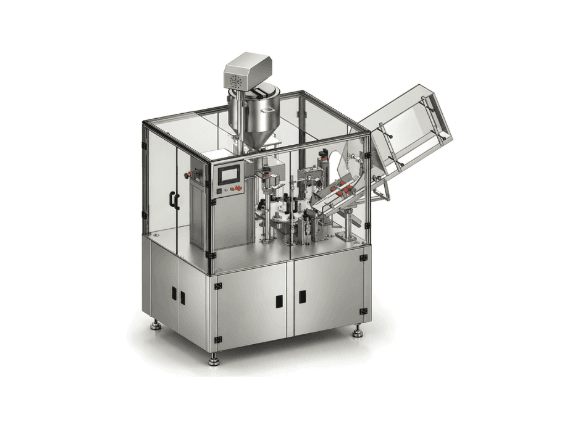

KI-ARTF40(Ultra) Automatic Rotary Tube Filling and Ultrasonic Sealing Machine (20 TPM)
Our Fully Automatic Rotary Tube Filling Machine with Ultrasonic Sealing is engineered for high-precision filling and premium-quality sealing of Plastic tubes. Designed for fully automated operation, the machine performs automatic tube feeding, orientation, filling, ultrasonic sealing, coding, and finished tube discharge in a continuous production cycle with minimal operator intervention. Equipped with advanced ultrasonic sealing technology, the machine produces clean, strong, and visually superior seals without the need for external heat, making it particularly suitable for cosmetic, personal care, pharmaceutical, and specialty products where packaging appearance is critical.
Precision Features for Automatic Indexer Driven Rotary Tube Filling & Ultrasonic Sealing Machine
Volumetric Piston Filling (Mechanical driven)
Positive cut-off system to prevent drips and spills.
Automatic Loading of tube gives consistency and desired output.
Ultrasonic Sealing Technology for Plastic tubes only.
No Tube-No Filling, No Sealing, No Trimming Technology (Saves energy & reduces wear and tear)
Machine function with PLC and operated with 7 inch HMI.
User friendly machine with excellent accessibility from all sides.
Position Indicators integrated for Volume Adjustment Calibration as well for height of the stations at each operation.
All contact parts will be in SS 316/SS 316L.
Optimized mechanisms reduce servicing needs.
Easy change over parts for change in tube diameter as well as syringe (filling volume).
Fully CGMP-compliant design.
Technical Specifications

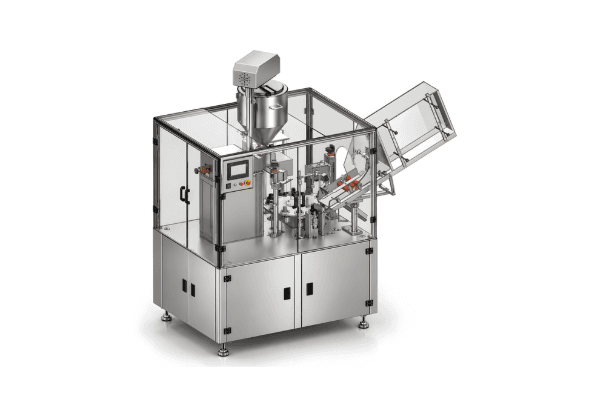

Filling Range & Accuracy
- 3 ml up to 250 ml filling range with the help of changing parts.
- For Above 10 grams, ± 1% accuracy
- For Below 10 grams, ± 2% accuracy
Output & No of stations
- Up to 20 tubes per minute & 12 stations.
Hopper Capacity
- 40 Litres.
Min/Max Tube Diameter and Height
- Diameter: 13 mm up to 50 mm.
- Height: 80 mm up to 200 mm.
Weight (Net & Gross)
- Net Weight: 800 kg
- Gross Weight: 1000 kg
Dimensions (L x W x H)
- 2000 x 1200 x 2200 mm.
Technical Specifications
Product Range
Utility Requirements (At Customer's Scope)
Documentation we can provide to support FDA Validation
Design Qualification (DQ)
Installation Qualification (IQ)
Operations Qualification (OQ)
Instruction & Operating Manual
Factory Acceptance Test (FAT)
Site Acceptance Test (SAT)
As Built Design (GA Drawings)
MOC Certificates (Contact parts)
Test Certificates (TC)
Electrical Drawings
Pneumatic Drawings
Spares List
