KI-STHS Semi-Automatic Hot Air Tube Sealing Machine
This model is suitable for sealing of Laminated as well as Plastic tubes with the Leister Hot Air Technology.
Our Hot Air Tube Sealing Machine is designed to deliver strong, consistent, and aesthetically superior seals for laminated and plastic tubes. The machine features an automatic slider movement that precisely positions each tube for the sealing cycle, ensuring repeatable performance and high sealing accuracy.
Precision Features for Hot Air Tube Sealing Machine
Automatic slider movement of tube holder.
Hot Air Sealing Technology with Leister (Swiss) Gun.
Position Indicators for Height Adjustment position indication of stands at each station.
10 Digits Coding with metal stereos on single side as well as both sides of the tube possible as per requirement.
Easy change over parts of tube holder, hot air adapter and burner.
Machine function with PLC and operated with 7 inch HMI.
Fully CGMP-compliant design.
Technical Specifications
Output
- Up to 12 Tubes per minute.
Min/Max Tube Diameter
- 13 mm up to 50 mm diameter.
Weight (Net & Gross)
- Net Weight: 220 kg
- Gross Weight: 260 kg

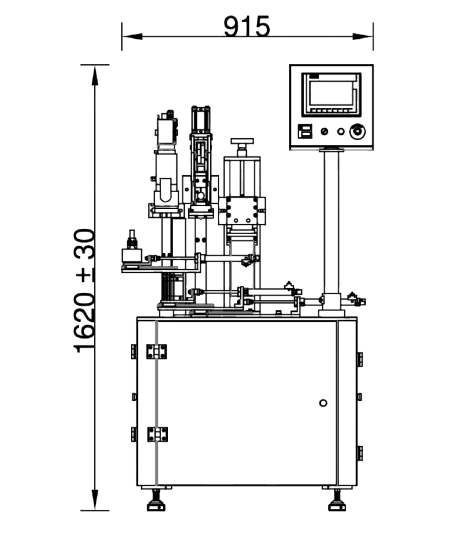

Dimensions (L x W x H)
- 900 x 550 x 1600 mm.
Technical Specifications
Utility Requirements (At Customer's Scope)
Documentation to support FDA Validation
Design Qualification (DQ)
Installation Qualification (IQ)
Operations Qualification (OQ)
Instruction & Operating Manual
Factory Acceptance Test (FAT)
As Built Design (GA Drawings)
Electrical Drawings
Pneumatic Drawings
Spares List
