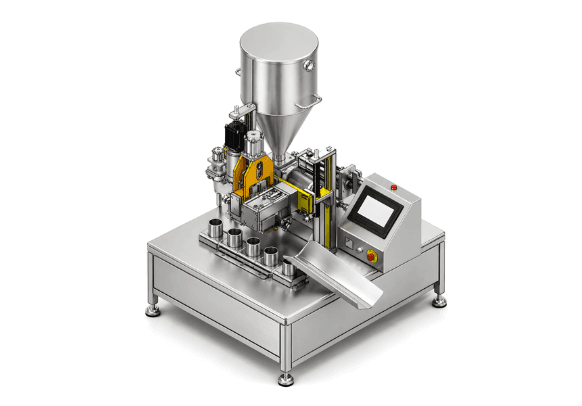

KI-R&D Semi-Automatic Tube Filling and Hot Air Sealing Machine (TableTop)
The R&D Tube Filling & Sealing Machine is a compact, all-in-one laboratory solution designed for product development, formulation trials, and small-batch production. Available in dedicated models for Laminated/Plastic tubes and Aluminium tubes, it performs the complete filling and sealing process with precision in a single machine, delivering consistent, reliable, and production-representative results.
Precision Features for Tube Filling & Hot Air Sealing/Crimping Machine
Volumetric Piston Filling.
Shut Off Nozzle to avoid dripping.
Position Indicators integrated for Volume Adjustment Calibration.
All contact parts will be in SS 316/SS 316L.
Easy change over parts of nozzles,Hot air adapter and burner, syringes and tube holder.
Easy Slider Movement of Tube Holder manually for all process for accurate positioning.
10 digits Coding with metal stereos possible on one side during sealing.
Machine is operated with push button for operating all operations.
Fully CGMP-compliant design.
Technical Specifications
Filling Range
- 5 ml up to 250 ml with the help of changing parts.
Filling Accuracy
- ± 1%
Output
- Up to 12 tubes per minute.
Hopper Capacity
- 40 Litres.
Min/Max Tube Diameter
- 13 mm up to 50 mm diameter.
Weight (Net & Gross)
- Net Weight: 250 kg
- Gross Weight: 300 kg
Dimensions (L x W x H)
- 1100 x 800 x 1000 mm.
Technical Specifications
Product Range
Utility Requirements (At Customer's Scope)
Documentation to support FDA Validation
Design Qualification (DQ)
Installation Qualification (IQ)
Operations Qualification (OQ)
Instruction & Operating Manual
Factory Acceptance Test (FAT)
As Built Design (GA Drawings)
Electrical Drawings
Pneumatic Drawings
Spares List
