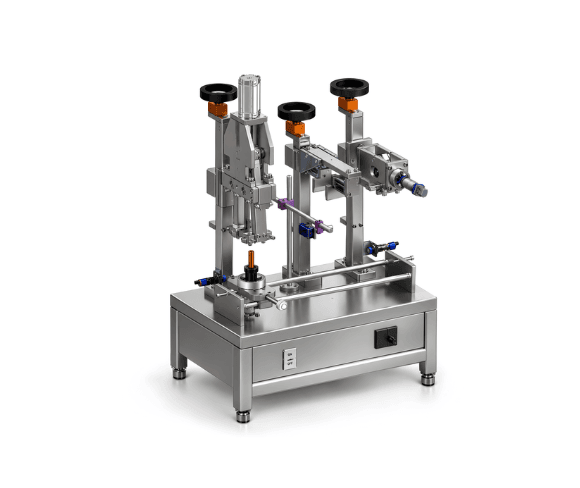

KI-STCTC (Press + Fold + Code) Semi-Automatic Collapsible Tube Crimping Machine
The Table Top Aluminium Tube Pressing, Crimping & Coding Machine is a compact solution for R&D, laboratory, and small-batch production. It features three stations—pressing, crimping, and coding—to ensure air-free sealing, secure tube closure, and precise embossing of batch details using interchangeable metal stereos. An optional tube positioning station with an I-Mark sensor enables accurate manual alignment of printed tubes. Controlled by sensors and an intelligent controller, the machine delivers reliable, accurate, and repeatable operation.
Precision Features for Metal Tube Crimping Machine
Single Tube Holder Slider System
Sensor Based Logic Controller functions the Crimping process
Easy change over parts from one tube diameter to another.
Triple Process of Pressing, Crimping and Coding ensures air free high quality seal with the required batch number or Mfg details.
Position Indicators for Height Adjustment of stations for calibration of different height of tubes.
Fully CGMP-compliant design.
Technical Specifications
Output
- Up to 10 tubes per minute.
Min/Max Tube Diameter
- 13 mm up to 40 mm.
Weight (Net & Gross)
- Net Weight: 85 kg
- Gross Weight: 105 kg
Dimensions (L x W x H)
- 550 x 500 x 1000 mm.
Technical Specifications
Utility Requirements (At Customer's Scope)
Documentation to support FDA Validation
Design Qualification (DQ)
Installation Qualification (IQ)
Operations Qualification (OQ)
Instruction & Operating Manual
Factory Acceptance Test (FAT)
As Built Design (GA Drawings)
Electrical Drawings
Pneumatic Drawings
Spares List
Get the Right Crimping Machine for Your Metal Tubes.
Enquire Now
Related Products
Tube Filling Machines
KI-R&D Semi-Automatic Tube Filling and Hot Air Sealing Machine (TableTop)
Tube Filling Machines
KI-STCTC (Press + Fold) Semi-Automatic Collapsible Tube Crimping Machine
Tube Filling Machines
KI-STCTC (Fold + Code) Semi-Automatic Collapsible Tube Crimping Machine
Tube Filling Machines
KI-STCTC (Press + Fold + Code) Semi-Automatic Collapsible Tube Crimping Machine
Tube Filling Machines
KI-SRTF40(Ultra) Semi-Automatic Rotary Tube Filling and Ultrasonic Sealing Machine
Tube Filling Machines
KI-ARTF40(Ultra) Automatic Rotary Tube Filling and Ultrasonic Sealing Machine (20 TPM)
Tube Filling Machines

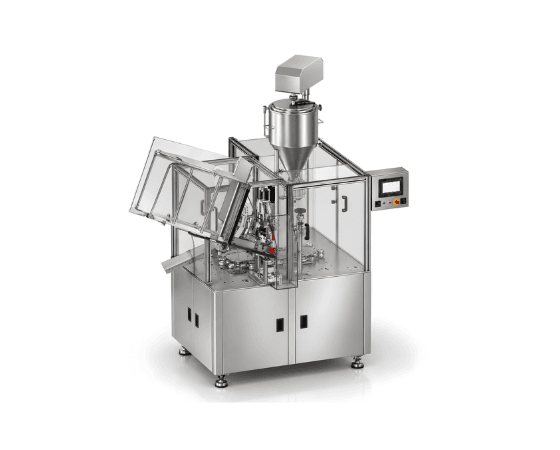

KI-ALTF60(COMBO) Automatic Single Head Linear Tube Filling Machine (60 TPM)
